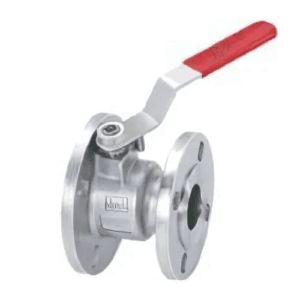

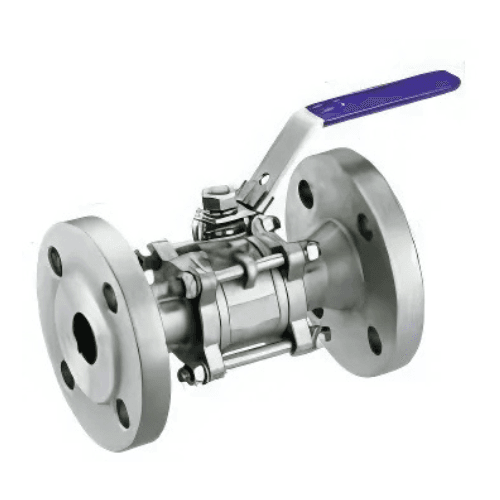

BALL VALVES

BALL VALVES

Precision Engineering, Reliable Flow: Ball Valves for Versatile Applications

Type of Valves: 1Pc./2Pc./3Pc./Three Way/Four Way And (2Pc.& 3Pc. Trunion Mounted) / Jacketed Valves On Request
Manufacturing Standard: API 6D/BS 5351/BS 5159
Inspection & Testing: BS 6755/ API 598
Material of Construction: Cast Iron WCB/WC5/WC6/WC9/ CF8/CF8M/CF3/CF3 M4A/5A & other special exotic alloys.
Seat Seals: PTFE/RPTFE/GFT/PEEK/Metal to Metal
End Connections: Screwed to BSP/BSPT/NPT Socket Weld / Butt Weld with extended Nipple Flanged Ends / Butt Weld Ends/FF/RF/RTJ.
Pressure Rating: 125#/ 150#/300#/600#/900#/1500#/2500#
Operation: Lever/Gear/Electrical Actuator Pneumatic Rotary Actuator
Size Range: 8mm to 1000mm
